Stereo 3D viewer#

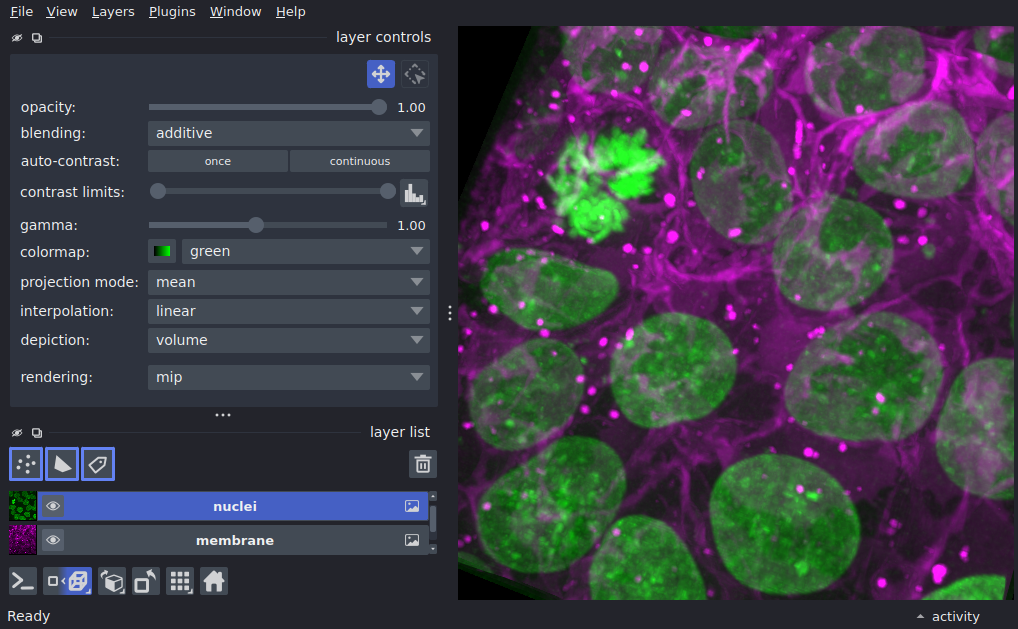

Two side-by-side 3D viewers with the same layers and synchronized cameras. A small horizontal eye separation is applied so the pair can be viewed stereoscopically (parallel / wall-eyed fusion).
Interact with either eye view or the main viewer: angles, zoom, and perspective stay locked; only the look-at center is offset left/right.
Use the eye-separation spinbox to tune parallax for your data and screen size. Cross-eyed viewing: use a negative separation.
Attribute Qt::AA_ShareOpenGLContexts must be set before QCoreApplication is created.
/home/runner/work/docs/docs/.venv/lib/python3.12/site-packages/napari/_qt/qt_event_loop.py:49: UserWarning: System theme detection requires a Qt6 backend. Please switch to PyQt6 or PySide6 to use it.
theme_type=get_system_theme(),
/home/runner/work/docs/docs/.venv/lib/python3.12/site-packages/napari/_qt/qt_event_loop.py:49: UserWarning: System theme detection requires a Qt6 backend. Please switch to PyQt6 or PySide6 to use it.
theme_type=get_system_theme(),
import numpy as np
from qtpy.QtCore import Qt
from qtpy.QtWidgets import (
QApplication,
QDoubleSpinBox,
QHBoxLayout,
QLabel,
QMainWindow,
QVBoxLayout,
QWidget,
)
import napari
from napari.components.camera import Camera
from napari.components.viewer_model import ViewerModel
from napari.layers import Layer
from napari.qt import QtViewer, get_stylesheet
from napari.settings import get_settings
class StereoViewerWindow(QMainWindow):
def closeEvent(self, event) -> None:
# Avoid macOS black-space quirk when closing while fullscreen
# (borrowed idea from napari's main window closeEvent).
if self.isFullScreen():
self.showNormal()
super().closeEvent(event)
def copy_layer(layer: Layer) -> Layer:
return Layer.create(*layer.as_layer_data_tuple())
class StereoViewerWidget(QWidget):
"""Side-by-side 3D viewers with a stereo camera offset."""
def __init__(self, viewer: napari.Viewer) -> None:
super().__init__()
self.viewer = viewer
self.viewer_left = ViewerModel(title='left eye')
self.viewer_right = ViewerModel(title='right eye')
self._block = False
self._eye_separation = 20.0
# Reused only to derive view/up directions from Euler angles.
self._direction_camera = Camera()
# Create viewers first, then add layers
self.qt_left = QtViewer(self.viewer_left)
self.qt_right = QtViewer(self.viewer_right)
for layer in viewer.layers:
self.viewer_left.layers.append(copy_layer(layer))
self.viewer_right.layers.append(copy_layer(layer))
for model in self._all_models():
model.dims.ndisplay = 3
# eye separation control
controls = QHBoxLayout()
controls.addWidget(QLabel('Eye separation'))
self.separation_spin = QDoubleSpinBox()
self.separation_spin.setRange(-500.0, 500.0)
self.separation_spin.setSingleStep(1.0)
self.separation_spin.setDecimals(1)
self.separation_spin.setValue(self._eye_separation)
self.separation_spin.valueChanged.connect(self._on_separation_changed)
controls.addWidget(self.separation_spin)
controls.addStretch(1)
# left and right eye viewers
eye_layout = QHBoxLayout()
eye_layout.addWidget(self.qt_left)
eye_layout.addWidget(self.qt_right)
# main layout
layout = QVBoxLayout()
layout.setContentsMargins(0, 0, 0, 0)
layout.addLayout(controls)
layout.addLayout(eye_layout)
self.setLayout(layout)
for model in self._all_models():
model.camera.events.angles.connect(self._camera_update)
model.camera.events.center.connect(self._camera_update)
model.camera.events.zoom.connect(self._camera_update)
model.camera.events.perspective.connect(self._camera_update)
self.viewer.events.reset_view.connect(self._reset_view)
# Mild perspective helps stereo depth cues.
self.viewer.camera.perspective = 30
def _all_models(self) -> tuple[ViewerModel, ViewerModel, ViewerModel]:
return (self.viewer, self.viewer_left, self.viewer_right)
def _camera_right_vector(
self, angles: tuple[float, float, float]
) -> np.ndarray:
"""Unit vector pointing right on the canvas for the given Euler angles."""
self._direction_camera.angles = angles
right = np.cross(
self._direction_camera.up_direction,
self._direction_camera.view_direction,
)
norm = np.linalg.norm(right)
if norm < 1e-8:
return np.array([0.0, 0.0, 1.0])
return right / norm
def _on_separation_changed(self, value: float) -> None:
# when the eye separation is changed, re-calculate and apply camera state to all viewers
self._eye_separation = value
cam = self.viewer.camera
self._apply_stereo_from(
cam.angles, cam.center, cam.zoom, cam.perspective
)
def _reset_view(self) -> None:
# Main viewer already reset; push its camera through stereo sync.
cam = self.viewer.camera
self._apply_stereo_from(
cam.angles, cam.center, cam.zoom, cam.perspective
)
def _base_center_from(
self,
model: ViewerModel,
angles: tuple[float, float, float],
center: tuple[float, float, float] | tuple[float, float],
) -> np.ndarray:
"""Shared (cyclopean) look-at center implied by an eye camera center."""
right_direction = self._camera_right_vector(angles)
half = self._eye_separation / 2.0
center_arr = np.asarray(center, dtype=float)
if model is self.viewer_left:
return center_arr + half * right_direction
if model is self.viewer_right:
return center_arr - half * right_direction
return center_arr
def _apply_stereo_from(
self,
angles: tuple[float, float, float],
center: tuple[float, float, float] | tuple[float, float] | np.ndarray,
zoom: float,
perspective: float,
) -> None:
"""Apply shared camera state with left/right look-at offsets."""
right_direction = self._camera_right_vector(angles)
half = self._eye_separation / 2.0
base = np.asarray(center, dtype=float)
prev = self._block
self._block = True
try:
for model, sign in (
(self.viewer, 0.0),
(self.viewer_left, -1.0),
(self.viewer_right, 1.0),
):
model.camera.angles = angles
model.camera.zoom = zoom
model.camera.perspective = perspective
model.camera.center = tuple(
base + sign * half * right_direction
)
finally:
self._block = prev
def _camera_update(self, event) -> None:
if self._block:
return
source_cam = event.source
model = next(m for m in self._all_models() if m.camera is source_cam)
# shared look-at without this eye's stereo offset
base = self._base_center_from(
model, source_cam.angles, source_cam.center
)
# apply the stereo effect to the viewer
self._apply_stereo_from(
source_cam.angles,
base,
source_cam.zoom,
source_cam.perspective,
)
if __name__ == '__main__':
# Needed so additional OpenGL canvases can share contexts with the main viewer.
QApplication.setAttribute(Qt.ApplicationAttribute.AA_ShareOpenGLContexts)
viewer = napari.Viewer(ndisplay=3)
viewer.open_sample('napari', 'cells3d')
viewer.camera.angles = (-20, 20, -20)
window = StereoViewerWindow()
window.setStyleSheet(get_stylesheet(get_settings().appearance.theme))
window.setWindowTitle('Stereo 3D')
window.setCentralWidget(StereoViewerWidget(viewer))
window.resize(1000, 500)
window.show()
napari.run()
