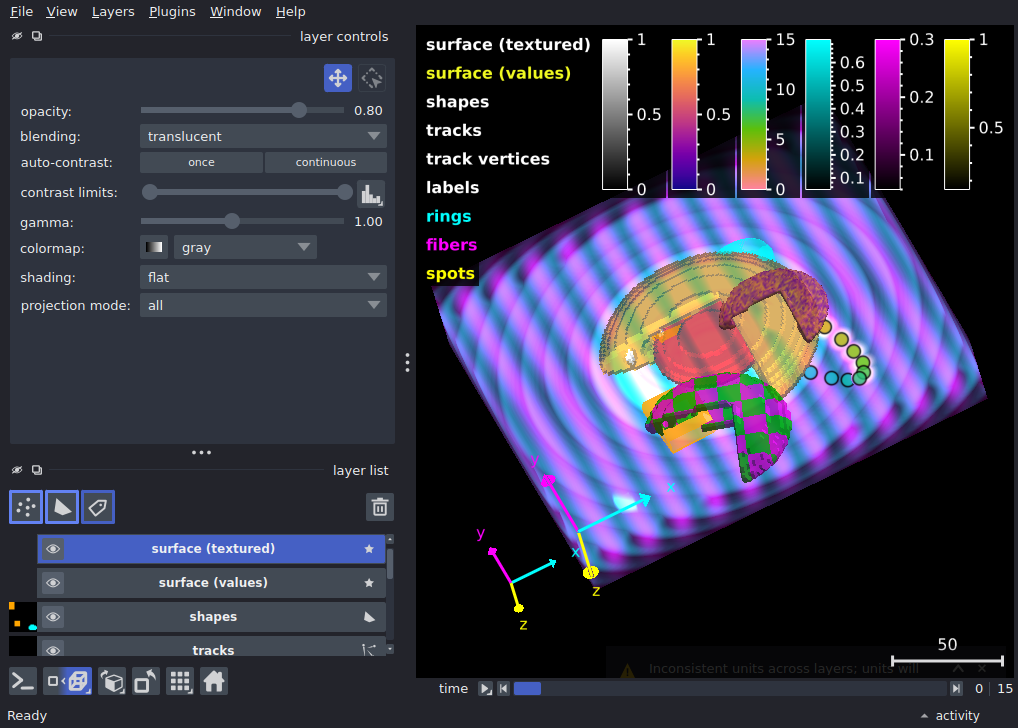

4D multiple layer type rendering#
Display a synthetic 4D dataset (time, z, y, x) that exercises most
of napari’s layer types together in a single 3D-plus-time scene.
The spatial volume (z, y, x) is filled with three image channels
– “spots” (moving blobs), “fibers” (rotating stripes)
and “rings” (pulsing concentric rings) – built as multiscale pyramids
so they render efficiently in 3D. A 4-label segmentation derived from
those same channels shows off Labels rendering, 16 point
trajectories are shown both as a Points layer (colored by track id)
and as a Tracks layer with fading tails, a few static shapes add
simple flat annotations to the scene, and a Surface mesh – built
with skimage.measure.marching_cubes on label 2 (the orange shell)
– wrapping the shell region with a blocky, stepped surface.
That mesh is static, but its per-vertex coloring uses random values
with the 'plasma' colormap, giving the surface a swirly animated
appearance as you scrub through time (via vertex_values of shape
(n_time, n_vertices)). A gradient texture blends on top, exactly
like the plasma_spot demo in surface_texture_and_colors.py.
Along the way, this example also demonstrates non-uniform layer
scale/units (time in seconds, space in micrometers), locking a
multiscale image to its finest level, DirectLabelColormap, and
iso_categorical rendering for labels.
WARNING: Inconsistent units across layers; units will not be used for rendering.
WARNING: Inconsistent units across layers; units will not be used for rendering.
from __future__ import annotations
import numpy as np
from skimage.measure import marching_cubes
import napari
from napari.utils.colormaps import DirectLabelColormap
AXIS_LABELS = ('time', 'z', 'y', 'x')
IMAGE_SHAPE = (16, 24, 160, 200)
LAYER_SCALE = (1, 2.0, 1.0, 1.0)
LAYER_UNITS = ('second', 'micrometer', 'micrometer', 'micrometer')
OPENING_SLICE = (0,)
N_FIELD_SPOTS = 8
N_TRACK_SPOTS = 16
def make_coordinate_grids() -> tuple[np.ndarray, ...]:
"""Return broadcast coordinate arrays for four axes (time, z, y, x)."""
n_time, n_z, n_y, n_x = IMAGE_SHAPE
time = np.arange(n_time, dtype=np.float32)[:, None, None, None]
z = np.linspace(-1.0, 1.0, n_z, dtype=np.float32)[None, :, None, None]
y = np.linspace(-1.0, 1.0, n_y, dtype=np.float32)[None, None, :, None]
x = np.linspace(-1.15, 1.15, n_x, dtype=np.float32)[None, None, None, :]
return time, z, y, x
def normalize_layers(*layers: np.ndarray) -> tuple[np.ndarray, ...]:
"""Normalize all layers to [0, 1] using their shared maximum."""
max_value = max(float(layer.max()) for layer in layers)
normalized = [(layer / max_value).astype(np.float32) for layer in layers]
return tuple(normalized)
def _downsample_spatial(arr: np.ndarray, factor: int) -> np.ndarray:
"""Downsample the last 3 spatial dims (z, y, x) by *factor* using local mean."""
*leading, nz, ny, nx = arr.shape
nz_out, ny_out, nx_out = nz // factor, ny // factor, nx // factor
return arr.reshape(*leading, nz_out, factor, ny_out, factor, nx_out, factor).mean(
axis=(-5, -3, -1)
)
def _spot_center(
time_fraction: float | np.ndarray, spot_id: int
) -> tuple[float | np.ndarray, float | np.ndarray, float | np.ndarray]:
"""Return the (z, y, x) center of a spot's looping trajectory.
``time_fraction`` may be a scalar or an array -- the same formula is
used to paint the glowing 'spots' image channel (combined across
many blobs, with an array ``time_fraction``) and to place the
discrete point/track trajectories (with a scalar ``time_fraction``).
"""
phase = spot_id * np.pi / 8
z = 0.25 * np.sin(time_fraction * np.pi + phase * 0.5)
y = -0.35 + 0.5 * time_fraction + 0.30 * np.cos(phase)
x = 0.35 - 0.5 * time_fraction + 0.30 * np.sin(phase * 0.7)
return z, y, x
def _spot_positions(time_idx: int, spot_id: int) -> tuple[int, int, int]:
"""Return (z, y, x) voxel indices for a spot.
Each *spot_id* (0-15) follows a unique trajectory through the volume.
"""
n_time, n_z, n_y, n_x = IMAGE_SHAPE
tf = time_idx / max(n_time - 1, 1)
z_pos, y_pos, x_pos = _spot_center(tf, spot_id)
z_idx = int(np.clip(np.round((z_pos + 1) * 0.5 * (n_z - 1)), 0, n_z - 1))
y_idx = int(np.clip(np.round((y_pos + 1) * 0.5 * (n_y - 1)), 0, n_y - 1))
x_idx = int(np.clip(np.round((x_pos + 1.15) / 2.3 * (n_x - 1)), 0, n_x - 1))
return z_idx, y_idx, x_idx
def make_image_layers() -> tuple[dict[str, list[np.ndarray]], np.ndarray]:
"""Build three 4D image channels as multiscale pyramids, plus labels."""
time, z, y, x = make_coordinate_grids()
n_time, _n_z, _n_y, _n_x = IMAGE_SHAPE
time_fraction = time / max(n_time - 1, 1)
time_phase = time_fraction * np.pi
# ---- Accumulate multiple moving spots (pointwise max, not sum) -----
spots = np.zeros(IMAGE_SHAPE, dtype=np.float32)
for sid in range(N_FIELD_SPOTS):
sz, sy, sx = _spot_center(time_fraction, sid)
blob = np.exp(-(((z - sz) / 0.12) ** 2 + ((y - sy) / 0.055) ** 2 + ((x - sx) / 0.055) ** 2))
spots = np.maximum(spots, blob)
# ---- Core (central sphere that pulses) -----------------------------
core_radius = np.sqrt((0.85 * z) ** 2 + y**2 + x**2)
core = np.exp(-(core_radius**2) / 0.18) * (0.85 + 0.15 * np.cos(time_phase))
# ---- Shell (concentric shell around core) --------------------------
shell = np.exp(-((core_radius - 0.48) ** 2) / 0.02)
shell = shell * (0.85 + 0.15 * np.sin(time_phase + np.pi / 4))
# ---- Fibers (stripe pattern rotating with time) --------------------
theta = time_phase / 3
fibers = 0.5 + 0.5 * np.cos(10 * np.pi * (np.cos(theta) * x + np.sin(theta) * y) + time_phase)
fibers = fibers * np.exp(-(z**2) / 0.42)
# ---- Rings (concentric ring pattern with radial fade) --------------
r_rings = np.sqrt(x**2 + y**2 + (0.75 * z) ** 2)
rings = 0.5 + 0.5 * np.cos(16 * np.pi * r_rings - 1.5 * time_phase)
rings = rings * (1 - np.exp(-4 * r_rings)) # fade to 0 at center
rings = rings * np.exp(-(z**2) / 0.65)
# ---- Fiducial (static marker) --------------------------------------
fiducial = ((np.abs(y + 0.75) < 0.05) & (np.abs(x + 0.82) < 0.05)).astype(np.float32)
fiducial = fiducial * np.exp(-((z - 0.6 * np.sin(time_phase)) ** 2) / 0.03)
# ---- Blend channels ------------------------------------------------
channel_0 = 0.05 + 0.85 * spots + 0.15 * core
channel_1 = 0.08 + 0.55 * fibers * (0.3 + 0.7 * core) + 0.2 * spots
channel_2 = 0.05 + 0.45 * shell + 0.35 * rings + 0.4 * fiducial
spots_ch, fibers_ch, rings_ch = normalize_layers(channel_0, channel_1, channel_2)
def _pyramid(arr: np.ndarray) -> list[np.ndarray]:
return [arr, _downsample_spatial(arr, 2), _downsample_spatial(arr, 4)]
image_layers = {
'spots': _pyramid(spots_ch),
'fibers': _pyramid(fibers_ch),
'rings': _pyramid(rings_ch),
}
# ---- Labels from thresholds ----------------------------------------
shell_mask = (shell > 0.5) & ((x > 0.15) | (y > 0.15))
core_mask = (core > 0.6) & ~shell_mask
spot_mask = (spots > 0.5) & (core > 0.15)
fiber_mask = (fibers > 0.88) & (core > 0.22) & (x < -0.1) & (y > 0.15)
labels = np.zeros(IMAGE_SHAPE, dtype=np.uint8)
labels[core_mask] = 1
labels[shell_mask] = 2
labels[spot_mask] = 3
labels[fiber_mask] = 4
return image_layers, labels
def make_tracks_data() -> tuple[np.ndarray, dict, dict]:
"""Generate 16 tracks through (z, y, x) over time.
Returns
-------
data : np.ndarray, shape (128, 5)
Columns: [track_id, t, z, y, x] for 8 time points x 16 tracks.
features : dict
Per-vertex feature dict with 'track_id'.
graph : dict
Empty.
"""
n_time = IMAGE_SHAPE[0]
rows = []
for spot_id in range(N_TRACK_SPOTS):
for time_idx in range(n_time):
z, y, x = _spot_positions(time_idx, spot_id)
rows.append([spot_id, time_idx, z, y, x])
data = np.array(rows, dtype=float)
features = {'track_id': data[:, 0].copy()}
return data, features, {}
def make_shapes() -> tuple[list[np.ndarray], list[str], list[str]]:
"""Build a few flat rectangles/ellipses to decorate the scene.
Each shape sits in the (y, x) plane at the mid z-slice and the first
time point, and is described by its center, half-height, half-width,
its ``shape_type`` (for `Viewer.add_shapes`), and a display color.
"""
_, n_z, n_y, n_x = IMAGE_SHAPE
mid_z, mid_y, mid_x = n_z // 2, n_y // 2, n_x // 2
# (center_y, center_x, half_height, half_width, shape_type, color)
shape_specs = [
(mid_y - 30, mid_x - 30, 10, 10, 'rectangle', 'orange'),
(mid_y + 30, mid_x + 30, 8, 12, 'ellipse', 'cyan'),
(mid_y + 18, mid_x - 12, 8, 8, 'rectangle', 'orange'),
]
shapes, shape_types, colors = [], [], []
for cy, cx, half_h, half_w, shape_type, color in shape_specs:
corners = np.array(
[
[0, mid_z, cy - half_h, cx - half_w],
[0, mid_z, cy - half_h, cx + half_w],
[0, mid_z, cy + half_h, cx + half_w],
[0, mid_z, cy + half_h, cx - half_w],
]
)
shapes.append(corners)
shape_types.append(shape_type)
colors.append(color)
return shapes, shape_types, colors
def make_surface(
labels: np.ndarray,
) -> tuple[np.ndarray, np.ndarray, np.ndarray, np.ndarray, np.ndarray]:
"""Extract a mesh from label 2 (orange shell region) at the first
timepoint, then generate random ``vertex_values`` across time so the
surface animates with a swirly ``'plasma'`` colormap.
The ``vertex_values`` have shape ``(n_time, n_vertices)`` which gives
the surface a 4D ``(time, z, y, x)`` dimensionality -- the time
slider changes which values color the mesh. A diagonal gradient
texture is blended on top (see `surface_texture_and_colors.py`).
"""
# get surface vertices and faces
n_time, _n_z, _n_y, _n_x = IMAGE_SHAPE
mask_3d = (labels[0] == 2).astype(np.float32)
vertices, faces, _normals, _values = marching_cubes(mask_3d, level=0.5, step_size=2)
# Get vertex values
np.random.seed(0)
vertex_values = 0.25 + 0.5 * np.random.random((n_time, len(vertices)))
# High-contrast checkerboard texture.
tex_size = 64
checker = ((np.indices((tex_size, tex_size)) // 10).sum(axis=0) % 2).astype(np.uint8)
texture = np.dstack([checker * 255, (1 - checker) * 200, checker * 255])
# 2D (u, v) texcoords from the (y, x) plane of the vertices.
v_min = vertices[:, 1:3].min(axis=0)
v_max = vertices[:, 1:3].max(axis=0)
texcoords = (vertices[:, 1:3] - v_min) / (v_max - v_min)
return vertices, faces, vertex_values, texture, texcoords
image_layers, labels = make_image_layers()
tracks, track_features, track_graph = make_tracks_data()
shapes, shape_types, shape_colors = make_shapes()
surface_vertices, surface_faces, surface_values, surface_texture, surface_texcoords = make_surface(
labels
)
viewer = napari.Viewer(ndisplay=3)
# -- Multiscale image channels -------------------------------------------
for ch_name, ch_data, cmap, blend in (
('spots', image_layers['spots'], 'yellow', 'translucent_no_depth'),
('fibers', image_layers['fibers'], 'magenta', 'additive'),
('rings', image_layers['rings'], 'cyan', 'additive'),
):
layer = viewer.add_image(
ch_data,
name=ch_name,
colormap=cmap,
blending=blend,
opacity=1,
axis_labels=AXIS_LABELS,
scale=LAYER_SCALE,
units=LAYER_UNITS,
multiscale=True,
locked_data_level = 0,
)
# set contrast limits, doesn't work with async on
viewer.layers['spots'].contrast_limits = (0.15, 1)
viewer.layers['fibers'].contrast_limits = (0.04, 0.3)
viewer.layers['rings'].contrast_limits = (0.05, 0.7)
viewer.add_labels(
labels,
name='labels',
colormap=DirectLabelColormap(
color_dict={
0: 'transparent',
1: 'red',
2: 'orange',
3: 'blue',
4: 'white',
None: 'gray',
}
),
rendering='iso_categorical',
opacity=0.6,
scale=LAYER_SCALE,
units=LAYER_UNITS,
axis_labels=AXIS_LABELS,
)
# -- Track vertices as points (4D: time, z, y, x) -----------------------
track_vertices = tracks[:, 1:] # [t, z, y, x]
viewer.add_points(
track_vertices,
name='track vertices',
features=track_features,
face_color='track_id',
face_colormap='husl',
size=6,
border_color='black',
border_width=0.15,
opacity=0.8,
scale=LAYER_SCALE,
units=LAYER_UNITS,
axis_labels=AXIS_LABELS,
)
# -- Tracks layer: 16 trajectories through (z,y,x) over time -------------
viewer.add_tracks(
tracks,
features=track_features,
graph=track_graph,
name='tracks',
opacity=0.7,
tail_width=3,
tail_length=3,
scale=LAYER_SCALE,
units=LAYER_UNITS,
axis_labels=AXIS_LABELS,
)
# -- Shapes layer --------------------------------------------------------
viewer.add_shapes(
shapes,
shape_type=shape_types,
name='shapes',
edge_color=shape_colors,
face_color=shape_colors,
opacity=0.6,
edge_width=4,
scale=LAYER_SCALE,
units=LAYER_UNITS,
axis_labels=AXIS_LABELS
)
# -- Surface: label-2 (orange shell) mesh with random plasma ----------
viewer.add_surface(
(surface_vertices, surface_faces, surface_values),
name='surface (values)',
colormap='plasma',
shading='smooth',
opacity=0.8,
translate=(0, 30, 80),
scale=tuple(s/2 for s in LAYER_SCALE[1:]),
units=LAYER_UNITS[1:],
axis_labels=AXIS_LABELS[1:],
contrast_limits=(0,1),
)
# -- Surface: label-2 (orange shell) mesh with texture ----------
viewer.add_surface(
(surface_vertices, surface_faces),
name='surface (textured)',
texture=surface_texture,
texcoords=surface_texcoords,
shading='flat',
opacity=0.8,
rotate=20,
scale=tuple(s/1.5 for s in LAYER_SCALE[1:]),
units=LAYER_UNITS[1:],
axis_labels=AXIS_LABELS[1:],
)
for axis, value in enumerate(OPENING_SLICE):
viewer.dims.set_point(axis=axis, value=value)
viewer.canvas.overlays.axes.visible = True
viewer.canvas.overlays.axes.box = False
viewer.canvas.overlays.scale_bar.visible = True
viewer.scene.overlays.axes.visible = True
for layer in viewer.layers:
layer.name_overlay.visible = True
if hasattr(layer, 'colorbar'):
layer.colorbar.visible = True
if hasattr(layer, 'face_colorbar'):
layer.face_colorbar.visible = True
viewer.scene.camera.angles = (-25, -10, 145)
viewer.fit_to_view()
if __name__ == '__main__':
napari.run()
Total running time of the script: (0 minutes 10.210 seconds)
