Note
Go to the end to download the full example as a Python script or as a Jupyter notebook..

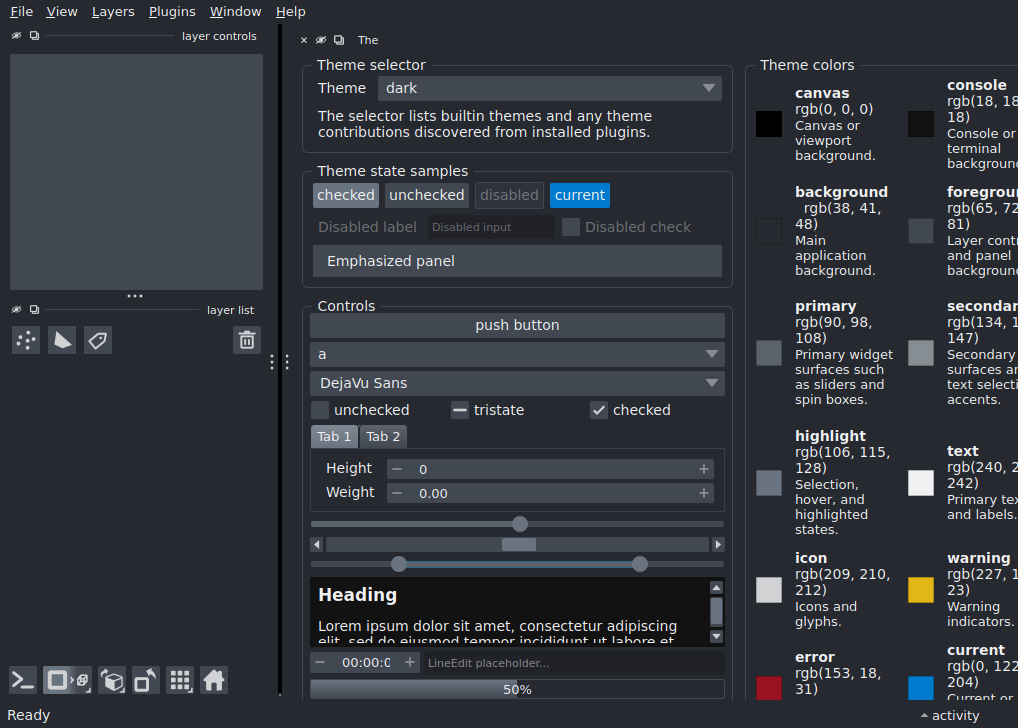

Theme sample#
Inspect napari themes with labeled color roles, common widget states, and a live theme selector.
The sample widget is docked inside napari so it inherits the same stylesheet used by the rest of the application. The theme selector includes builtin themes and any plugin-contributed themes discovered when the viewer starts.
from __future__ import annotations
from qtpy.QtCore import Qt
from qtpy.QtWidgets import (
QCheckBox,
QComboBox,
QDoubleSpinBox,
QFontComboBox,
QFormLayout,
QFrame,
QGridLayout,
QGroupBox,
QHBoxLayout,
QLabel,
QLineEdit,
QProgressBar,
QPushButton,
QRadioButton,
QScrollArea,
QScrollBar,
QSizePolicy,
QSlider,
QSpinBox,
QTabWidget,
QTextEdit,
QTimeEdit,
QVBoxLayout,
QWidget,
)
from superqt import QRangeSlider
import napari
from napari.utils.theme import available_themes, get_theme
_BLURB = """
<h3>Heading</h3>
<p>Lorem ipsum dolor sit amet, consectetur adipiscing elit,
sed do eiusmod tempor incididunt ut labore et dolore magna
aliqua. Ut enim ad minim veniam, quis nostrud exercitation
ullamco laboris nisi ut aliquip ex ea commodo consequat.
Duis aute irure dolor in reprehenderit in voluptate velit
esse cillum dolore eu fugiat nulla pariatur. Excepteur
sint occaecat cupidatat non proident, sunt in culpa qui
officia deserunt mollit anim id est laborum.</p>
"""
_COLOR_DESCRIPTIONS: dict[str, str] = {
'canvas': 'Canvas or viewport background.',
'console': 'Console or terminal background.',
'background': 'Main application background.',
'foreground': 'Layer controls and panel background.',
'primary': 'Primary widget surfaces such as sliders and spin boxes.',
'secondary': 'Secondary surfaces and text selection accents.',
'highlight': 'Selection, hover, and highlighted states.',
'text': 'Primary text and labels.',
'icon': 'Icons and glyphs.',
'warning': 'Warning indicators.',
'error': 'Error indicators.',
'current': 'Current or active layer accent color.',
}
class TabDemo(QTabWidget):
def __init__(self, parent: QWidget | None = None) -> None:
super().__init__(parent)
tab1 = QWidget()
tab2 = QWidget()
self.addTab(tab1, 'Tab 1')
self.addTab(tab2, 'Tab 2')
layout1 = QFormLayout(tab1)
layout1.addRow('Height', QSpinBox())
layout1.addRow('Weight', QDoubleSpinBox())
layout2 = QFormLayout(tab2)
sex_row = QHBoxLayout()
sex_row.addWidget(QRadioButton('Male'))
sex_row.addWidget(QRadioButton('Female'))
layout2.addRow(QLabel('Sex'), sex_row)
layout2.addRow('Date of Birth', QLineEdit())
self.setMaximumHeight(88)
class ColorSwatch(QFrame):
def __init__(self, parent: QWidget | None = None) -> None:
super().__init__(parent)
self.setFixedSize(26, 26)
def set_color(self, color: str) -> None:
self.setStyleSheet(
f'background-color: {color}; border: 1px solid rgba(0, 0, 0, 0.25);'
)
class ColorSwatchRow(QWidget):
def __init__(
self,
role: str,
description: str,
parent: QWidget | None = None,
) -> None:
super().__init__(parent)
self._role = role
self._description = description
layout = QHBoxLayout(self)
layout.setContentsMargins(0, 0, 0, 0)
layout.setSpacing(8)
self._swatch = ColorSwatch()
self._label = QLabel()
self._label.setWordWrap(True)
layout.addWidget(self._swatch)
layout.addWidget(self._label, 1)
def set_color(self, color: str) -> None:
self._swatch.set_color(color)
text = f'<b>{self._role}</b> {color}'
if self._description:
text += (
f'<br/><span style="font-size: 9pt;">{self._description}</span>'
)
self._label.setText(text)
tooltip = f'{self._role}: {color}'
if self._description:
tooltip += f'\n{self._description}'
self.setToolTip(tooltip)
self._label.setToolTip(tooltip)
class ThemeSampleWidget(QWidget):
def __init__(self, viewer: napari.Viewer) -> None:
super().__init__()
self._viewer = viewer
self._color_rows: dict[str, ColorSwatchRow] = {}
self._theme_selector = QComboBox()
self._current_button = QPushButton('current')
self._theme_meta = QLabel()
self.setMinimumWidth(800)
self._build_ui()
self._viewer.events.theme.connect(self._sync_from_viewer_theme)
self._sync_from_viewer_theme()
def _build_ui(self) -> None:
outer_layout = QVBoxLayout(self)
outer_layout.setContentsMargins(0, 0, 0, 0)
scroll_area = QScrollArea()
scroll_area.setWidgetResizable(True)
scroll_area.setHorizontalScrollBarPolicy(
Qt.ScrollBarPolicy.ScrollBarAlwaysOff
)
outer_layout.addWidget(scroll_area)
content = QWidget()
content_layout = QHBoxLayout(content)
content_layout.setContentsMargins(12, 12, 12, 12)
content_layout.setSpacing(12)
scroll_area.setWidget(content)
left_column = QWidget()
left_layout = QVBoxLayout(left_column)
left_layout.setContentsMargins(0, 0, 0, 0)
left_layout.setSpacing(10)
left_layout.addWidget(self._build_theme_selector_group())
left_layout.addWidget(self._build_state_group())
left_layout.addWidget(self._build_controls_group())
left_layout.addStretch(1)
content_layout.addWidget(left_column, 2)
right_column = QWidget()
right_column.setMinimumWidth(300)
right_layout = QVBoxLayout(right_column)
right_layout.setContentsMargins(0, 0, 0, 0)
right_layout.setSpacing(10)
right_layout.addWidget(self._build_color_group())
right_layout.addStretch(1)
content_layout.addWidget(right_column, 3)
def _build_theme_selector_group(self) -> QGroupBox:
group = QGroupBox('Theme selector')
layout = QFormLayout(group)
self._theme_selector.addItems(available_themes())
self._theme_selector.setToolTip(
'Select a builtin or plugin-contributed napari theme.'
)
self._theme_selector.currentTextChanged.connect(
self._on_theme_selected
)
layout.addRow('Theme', self._theme_selector)
help_label = QLabel(
'The selector lists builtin themes and any theme contributions '
'discovered from installed plugins.'
)
help_label.setWordWrap(True)
layout.addRow(help_label)
return group
def _build_controls_group(self) -> QGroupBox:
group = QGroupBox('Controls')
layout = QVBoxLayout(group)
layout.setContentsMargins(6, 5, 6, 5)
layout.setSpacing(4)
layout.addWidget(QPushButton('push button'))
box = QComboBox()
box.addItems(['a', 'b', 'c', 'cd'])
layout.addWidget(box)
layout.addWidget(QFontComboBox())
checkbox_row = QHBoxLayout()
partial = QCheckBox('tristate')
partial.setTristate(True)
partial.setCheckState(Qt.CheckState.PartiallyChecked)
checked = QCheckBox('checked')
checked.setChecked(True)
checkbox_row.addWidget(QCheckBox('unchecked'))
checkbox_row.addWidget(partial)
checkbox_row.addWidget(checked)
layout.addLayout(checkbox_row)
layout.addWidget(TabDemo())
slider = QSlider(Qt.Orientation.Horizontal)
slider.setValue(50)
layout.addWidget(slider)
h_scrollbar = QScrollBar(Qt.Orientation.Horizontal)
h_scrollbar.setValue(50)
layout.addWidget(h_scrollbar)
layout.addWidget(QRangeSlider(Qt.Orientation.Horizontal, self))
text = QTextEdit()
text.setMaximumHeight(70)
text.setHtml(_BLURB)
layout.addWidget(text)
input_row = QHBoxLayout()
input_row.setContentsMargins(0, 0, 0, 0)
input_row.setSpacing(4)
input_row.addWidget(QTimeEdit())
edit = QLineEdit()
edit.setPlaceholderText('LineEdit placeholder...')
input_row.addWidget(edit, 1)
layout.addLayout(input_row)
progress = QProgressBar()
progress.setValue(50)
layout.addWidget(progress)
radio_group = QGroupBox('Exclusive Radio Buttons')
radio_layout = QHBoxLayout(radio_group)
radio_layout.setContentsMargins(6, 6, 6, 6)
radio1 = QRadioButton('&Radio button 1')
radio2 = QRadioButton('R&adio button 2')
radio3 = QRadioButton('Ra&dio button 3')
radio1.setChecked(True)
radio_layout.addWidget(radio1)
radio_layout.addWidget(radio2)
radio_layout.addWidget(radio3)
radio_group.setSizePolicy(
QSizePolicy.Policy.Preferred, QSizePolicy.Policy.Maximum
)
layout.addWidget(radio_group)
return group
def _build_state_group(self) -> QGroupBox:
group = QGroupBox('Theme state samples')
layout = QVBoxLayout(group)
button_row = QHBoxLayout()
button_row.addWidget(self._make_state_button('checked', checked=True))
button_row.addWidget(self._make_state_button('unchecked'))
button_row.addWidget(
self._make_state_button('disabled', enabled=False)
)
self._current_button.setCheckable(True)
self._current_button.setChecked(True)
button_row.addWidget(self._current_button)
button_row.addStretch(1)
layout.addLayout(button_row)
disabled_row = QHBoxLayout()
disabled_label = QLabel('Disabled label')
disabled_label.setEnabled(False)
disabled_edit = QLineEdit('Disabled input')
disabled_edit.setEnabled(False)
disabled_check = QCheckBox('Disabled check')
disabled_check.setEnabled(False)
disabled_row.addWidget(disabled_label)
disabled_row.addWidget(disabled_edit)
disabled_row.addWidget(disabled_check)
disabled_row.addStretch(1)
layout.addLayout(disabled_row)
emphasized_frame = QFrame()
emphasized_frame.setProperty('emphasized', True)
emphasized_layout = QHBoxLayout(emphasized_frame)
emphasized_layout.setContentsMargins(8, 6, 8, 6)
emphasized_layout.addWidget(QLabel('Emphasized panel'))
emphasized_layout.addStretch(1)
layout.addWidget(emphasized_frame)
return group
def _build_color_group(self) -> QGroupBox:
group = QGroupBox('Theme colors')
layout = QVBoxLayout(group)
grid = QGridLayout()
grid.setSpacing(10)
columns = 2
for index, role in enumerate(_COLOR_DESCRIPTIONS):
row_widget = ColorSwatchRow(role, _COLOR_DESCRIPTIONS[role])
row, column = divmod(index, columns)
grid.addWidget(row_widget, row, column)
self._color_rows[role] = row_widget
layout.addLayout(grid)
layout.addWidget(self._theme_meta)
return group
def _make_state_button(
self,
label: str,
*,
checked: bool = False,
enabled: bool = True,
) -> QPushButton:
button = QPushButton(label)
button.setCheckable(True)
button.setChecked(checked)
button.setEnabled(enabled)
return button
def _on_theme_selected(self, theme_id: str) -> None:
self._viewer.theme = theme_id
def _sync_from_viewer_theme(self, event=None) -> None:
theme_id = self._viewer.theme
theme = get_theme(theme_id)
was_blocked = self._theme_selector.blockSignals(True)
self._theme_selector.setCurrentText(theme_id)
self._theme_selector.blockSignals(was_blocked)
theme_dict = theme.to_rgb_dict()
for role, row in self._color_rows.items():
row.set_color(str(theme_dict[role]))
self._theme_meta.setText(
f'<b>Font size:</b> {theme_dict["font_size"]} '
f' | <b>Syntax style:</b> {theme_dict["syntax_style"]}'
)
self._current_button.setStyleSheet(
f'background-color: {theme.current.as_rgb()};'
)
viewer = napari.Viewer(title='Theme sample', show_welcome_screen=False)
widget = ThemeSampleWidget(viewer)
dock_widget = viewer.window.add_dock_widget(
widget,
area='right',
name='Theme sample',
)
dock_widget.setMinimumWidth(widget.minimumWidth())
if __name__ == '__main__':
napari.run()
