Interactive Control Over Parallel Computations#
Demonstrates the ability to drive and manipulate computations/simulations from within napari. The basis of the compute-intensive simulation in this example is a 3D implementation of Boids [1] which is accelerated by using multiple CPU cores either on a single machine (e.g. a laptop) via the multiprocessing [2] module from the Python Standard Library or across multiple nodes (e.g. a Linux cluster or even a supercomputer) via Dragon [3] which plugs into standard multiprocessing to extend it to execute across multiple nodes.

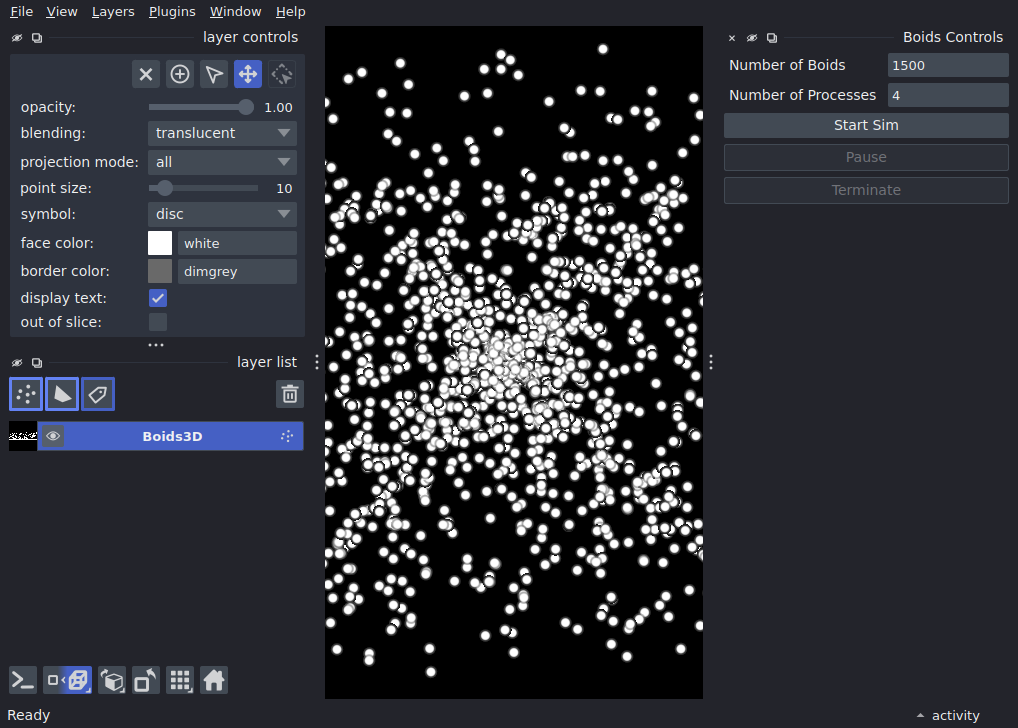

Within are examples of how to start/pause/restart/stop computation from the gui via QTWidgets and napari’s thread_worker.
Note: dragon unavailable; using standard multiprocessing
/home/runner/work/docs/docs/.venv/lib/python3.12/site-packages/napari/_qt/qt_event_loop.py:50: UserWarning: System theme detection requires a Qt6 backend. Please switch to PyQt6 or PySide6 to use it.
theme_type=get_system_theme(),
/home/runner/work/docs/docs/.venv/lib/python3.12/site-packages/napari/_qt/qt_event_loop.py:50: UserWarning: System theme detection requires a Qt6 backend. Please switch to PyQt6 or PySide6 to use it.
theme_type=get_system_theme(),
try:
import dragon # isort:skip # noqa: F401
import multiprocessing as mp # Must be after import of dragon
mp.set_start_method("dragon")
except (ImportError, ValueError):
if __name__ == "__main__":
print("Note: dragon unavailable; using standard multiprocessing")
except RuntimeError as re:
print(f"Warning: {re}")
finally:
import multiprocessing as mp
import sys
import time
import numpy as np
import qtpy.QtGui
import qtpy.QtWidgets
import napari
def radarray(N):
return np.random.uniform(0, 2 * np.pi, N)
def count(mask, n):
return np.maximum(mask.sum(axis=1), 1).reshape(n, 1)
def limit_acceleration(steer, n, maxacc=0.03):
norm = np.sqrt((steer * steer).sum(axis=1)).reshape(n, 1)
np.multiply(steer, maxacc / norm, out=steer, where=norm > maxacc)
return norm, steer
class Boids3D:
"""Implementation of Boids in 3D. Ref: http://www.red3d.com/cwr/boids/
Directly inspired by implementation for HoloViz by jlstevens.
Ref: https://examples.holoviz.org/gallery/boids/boids.html
"""
def __init__(self, N=500, width=400, height=400, depth=400):
self.width, self.height, self.depth, self.iteration = width, height, depth, 0
self.vel = np.vstack(
[
np.cos(radarray(N)),
np.sin(radarray(N)),
np.cos(radarray(N)),
]
).T
r = min(width, height) / 2 * np.random.uniform(0, 1, N)
self.pos = np.vstack(
[
width / 2 + np.cos(radarray(N)) * r / 4,
height / 2 + np.sin(radarray(N)) * r,
depth / 2 + np.sin(radarray(N)) * r,
]
).T
def flock(
self,
min_vel=0.5,
max_vel=2.0,
veryclose_radius=25,
kindaclose_radius=50,
slice_tot=1,
pool=None,
):
assert veryclose_radius <= kindaclose_radius
kwargs = {
'pos': self.pos,
'vel': self.vel,
'width': self.width,
'height': self.height,
'depth': self.depth,
'min_vel': min_vel,
'max_vel': max_vel,
'veryclose_radius': veryclose_radius,
'kindaclose_radius': kindaclose_radius,
}
if pool is None:
self.pos[:], self.vel[:] = self.compute_flock_step_forward(**kwargs)
else:
tasks = [
pool.apply_async(
self.compute_flock_step_forward,
kwds=(kwargs | {"slice_idx": slice_idx, "slice_tot": slice_tot}),
)
for slice_idx in range(slice_tot)
]
for slice_idx in range(slice_tot):
self.pos[slice_idx::slice_tot], self.vel[slice_idx::slice_tot] = tasks[
slice_idx
].get(timeout=30)
self.iteration += 1
@staticmethod
def compute_flock_step_forward(
pos,
vel,
width,
height,
depth,
min_vel=0.5,
max_vel=2.0,
veryclose_radius=25,
kindaclose_radius=50,
slice_idx=0,
slice_tot=1,
):
assert slice_tot > slice_idx >= 0
all_pos, all_vel = pos, vel
pos = all_pos[slice_idx::slice_tot]
vel = all_vel[slice_idx::slice_tot]
n_pos, n_all_pos = len(pos), len(all_pos)
dx = np.subtract.outer(pos[:, 0], all_pos[:, 0])
dy = np.subtract.outer(pos[:, 1], all_pos[:, 1])
dz = np.subtract.outer(pos[:, 2], all_pos[:, 2])
dist = np.hypot(np.hypot(dx, dy), dz)
mask_veryclose, mask_kindaclose = (
(dist > 0) * (dist < veryclose_radius),
(dist > 0) * (dist < kindaclose_radius),
)
target = np.dstack((dx, dy, dz))
target = np.divide(
target,
dist.reshape(n_pos, n_all_pos, 1) ** 2,
out=target,
where=dist.reshape(n_pos, n_all_pos, 1) != 0,
)
steer = (target * mask_veryclose.reshape(n_pos, n_all_pos, 1)).sum(
axis=1
) / count(mask_veryclose, n_pos)
norm = np.sqrt((steer * steer).sum(axis=1)).reshape(n_pos, 1)
steer = max_vel * np.divide(steer, norm, out=steer, where=norm != 0) - vel
norm, separation = limit_acceleration(steer, n_pos)
target = np.dot(mask_kindaclose, all_vel) / count(mask_kindaclose, n_pos)
norm = np.sqrt((target * target).sum(axis=1)).reshape(n_pos, 1)
target = max_vel * np.divide(target, norm, out=target, where=norm != 0)
steer = target - vel
norm, alignment = limit_acceleration(steer, n_pos)
target = np.dot(mask_kindaclose, all_pos) / count(mask_kindaclose, n_pos)
desired = target - pos
norm = np.sqrt((desired * desired).sum(axis=1)).reshape(n_pos, 1)
desired *= max_vel / norm
steer = desired - vel
norm, cohesion = limit_acceleration(steer, n_pos)
vel += 1.5 * separation + alignment + cohesion
norm = np.sqrt((vel * vel).sum(axis=1)).reshape(n_pos, 1)
np.multiply(vel, max_vel / norm, out=vel, where=norm > max_vel)
np.multiply(vel, min_vel / norm, out=vel, where=norm < min_vel)
pos += vel + (width, height, depth)
pos %= (width, height, depth)
return pos, vel
@napari.qt.thread_worker
def iterate_flock_forever(boids):
while True:
boids.flock()
yield boids.pos
@napari.qt.thread_worker
def iterate_accelerated_flock_forever(boids, num_workers=8):
with mp.Pool(num_workers) as pool:
while True:
boids.flock(pool=pool, slice_tot=num_workers)
yield boids.pos
timestamp_last_update = time.monotonic()
boids_layer = None
control_widget = None
def update_points_in_display(boids, state):
global timestamp_last_update
if boids_layer is not None:
boids_layer.data = boids.pos
timestamp_this_update = time.monotonic()
elapsed_time_update, timestamp_last_update = (
(timestamp_this_update - timestamp_last_update),
timestamp_this_update,
)
boids_layer.name = (
f"Iter_{boids.iteration} ({elapsed_time_update:.3f}s/iter) "
f"{state['num_boids']}-boids-on-{state['num_workers']}-procs"
)
class BoidsControlWidget(qtpy.QtWidgets.QWidget):
"""Dock widget with controls for a running Boids simulation.
All controls are built once. Button enabled states and text change as
the simulation moves between idle, running, and finished states.
"""
def __init__(self, viewer, worker, state):
super().__init__()
self._viewer = viewer
self._worker = worker
self._state = state
self._paused = False
layout = qtpy.QtWidgets.QVBoxLayout(self)
form = qtpy.QtWidgets.QFormLayout()
self._edit_num_boids = qtpy.QtWidgets.QLineEdit(
str(state.get("num_boids", 1500))
)
self._edit_num_boids.setValidator(qtpy.QtGui.QIntValidator(1, 100_000))
self._edit_num_procs = qtpy.QtWidgets.QLineEdit(
str(state.get("num_workers", 1))
)
self._edit_num_procs.setValidator(qtpy.QtGui.QIntValidator(1, 256))
form.addRow("Number of Boids", self._edit_num_boids)
form.addRow("Number of Processes", self._edit_num_procs)
layout.addLayout(form)
self._hide_prev_check = qtpy.QtWidgets.QCheckBox("Hide previous sim")
self._hide_prev_check.setChecked(True)
self._hide_prev_check.setVisible(False)
layout.addWidget(self._hide_prev_check)
self._start_btn = qtpy.QtWidgets.QPushButton("Start Sim")
self._pause_btn = qtpy.QtWidgets.QPushButton("Pause")
self._stop_btn = qtpy.QtWidgets.QPushButton("Terminate")
for btn in (self._start_btn, self._pause_btn, self._stop_btn):
layout.addWidget(btn)
self._pause_btn.setEnabled(False)
self._stop_btn.setEnabled(False)
self._start_btn.clicked.connect(self._on_start)
self._pause_btn.clicked.connect(self._on_pause_resume)
self._stop_btn.clicked.connect(self._on_stop)
worker.finished.connect(self._on_worker_finished)
def _on_start(self):
self._worker.start()
self._start_btn.setEnabled(False)
self._edit_num_boids.setEnabled(False)
self._edit_num_procs.setEnabled(False)
self._pause_btn.setEnabled(True)
self._stop_btn.setEnabled(True)
def _on_pause_resume(self):
if self._paused:
self._worker.resume()
self._pause_btn.setText("Pause")
else:
self._worker.pause()
self._pause_btn.setText("Resume")
self._paused = not self._paused
def _on_stop(self):
global boids_layer
self._worker.quit()
boids_layer = None
def _on_worker_finished(self):
self._edit_num_boids.setEnabled(True)
self._edit_num_procs.setEnabled(True)
self._pause_btn.setEnabled(False)
self._pause_btn.setText("Pause")
self._stop_btn.setEnabled(False)
self._hide_prev_check.setVisible(True)
self._start_btn.setText("Launch New Sim!")
self._start_btn.setEnabled(True)
self._start_btn.clicked.disconnect(self._on_start)
self._start_btn.clicked.connect(self._on_relaunch)
def _on_relaunch(self):
num_boids = int(self._edit_num_boids.text())
num_procs = int(self._edit_num_procs.text())
if self._hide_prev_check.isChecked() and self._viewer.layers:
self._viewer.layers[-1].visible = False
self._state.update(
num_boids=num_boids,
num_workers=num_procs,
parallel=num_procs > 1,
)
main(**self._state)
def main(
num_boids=500, width=600, height=600, depth=800, parallel=False, num_workers=1
):
global boids_layer, control_widget
state = {
'num_boids': num_boids,
'width': width,
'height': height,
'depth': depth,
'parallel': parallel,
'num_workers': num_workers,
}
boids = Boids3D(num_boids, width, height, depth)
title = f"napari+{'Dragon' if 'dragon' in sys.modules else 'multiprocessing'}"
viewer = napari.current_viewer() or napari.Viewer(title=title, ndisplay=3)
viewer.dims.ndisplay = 3 # ensure 3-D display when reusing an existing viewer
if control_widget is not None:
viewer.window.remove_dock_widget(control_widget)
control_widget = None
boids_layer = viewer.add_points(
boids.pos, 3, name="Boids3D"
)
if not parallel:
worker = iterate_flock_forever(boids)
else:
worker = iterate_accelerated_flock_forever(boids, num_workers=num_workers)
worker.yielded.connect(lambda _: update_points_in_display(boids, state))
control_widget = BoidsControlWidget(viewer, worker, state)
viewer.window.add_dock_widget(control_widget, area='right', name='Boids Controls')
return boids, viewer, worker
if __name__ == "__main__":
b, v, w = main(1500, parallel=True, num_workers=4)
napari.run()
