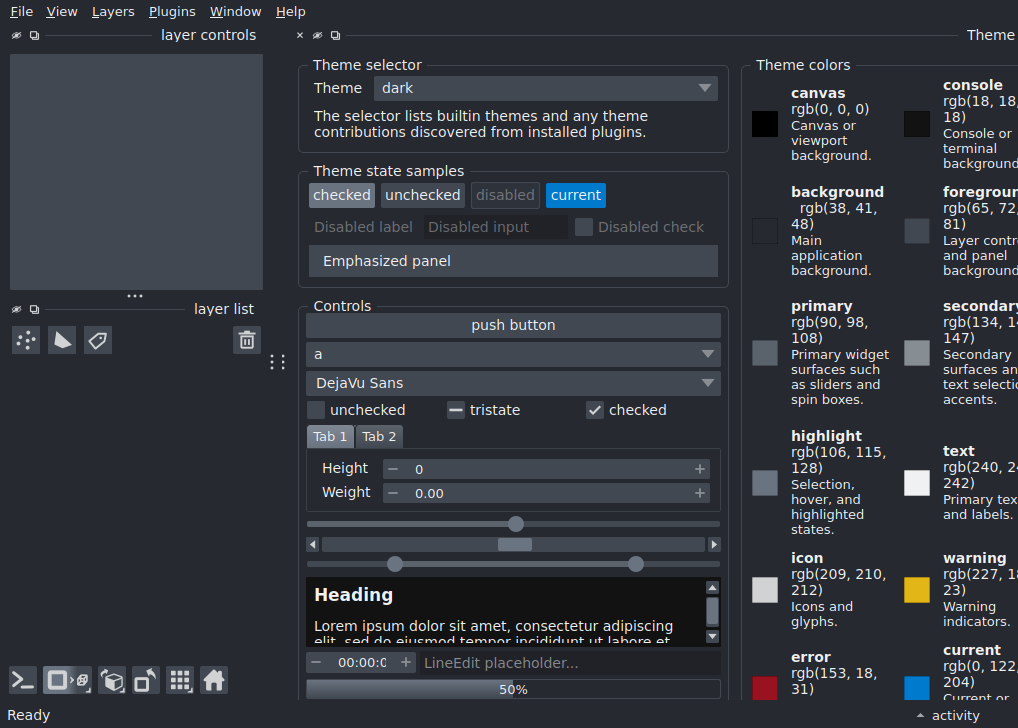

Theme sample#
Inspect napari themes with labeled color roles, common widget states, and a live theme selector.
The sample widget is docked inside napari so it inherits the same stylesheet used by the rest of the application. The theme selector includes builtin themes and any plugin-contributed themes discovered when the viewer starts.
/home/runner/work/docs/docs/.venv/lib/python3.12/site-packages/napari/_qt/qt_event_loop.py:50: UserWarning: System theme detection requires a Qt6 backend. Please switch to PyQt6 or PySide6 to use it.
theme_type=get_system_theme(),
/home/runner/work/docs/docs/.venv/lib/python3.12/site-packages/napari/_qt/qt_event_loop.py:50: UserWarning: System theme detection requires a Qt6 backend. Please switch to PyQt6 or PySide6 to use it.
theme_type=get_system_theme(),
from __future__ import annotations
from qtpy.QtCore import Qt
from qtpy.QtGui import QColor
from qtpy.QtWidgets import (
QCheckBox,
QComboBox,
QDoubleSpinBox,
QFontComboBox,
QFormLayout,
QFrame,
QGridLayout,
QGroupBox,
QHBoxLayout,
QHeaderView,
QLabel,
QLineEdit,
QProgressBar,
QPushButton,
QRadioButton,
QScrollArea,
QScrollBar,
QSizePolicy,
QSlider,
QSpinBox,
QTableWidget,
QTableWidgetItem,
QTabWidget,
QTextEdit,
QTimeEdit,
QVBoxLayout,
QWidget,
)
from superqt import QLabeledSlider, QRangeSlider
import napari
from napari.utils.theme import available_themes, get_theme
# ── WCAG 2.1 helpers ───────────
_AA_NORMAL = 4.5
_AA_LARGE = 3.0
_AAA_NORMAL = 7.0
_AAA_LARGE = 4.5
_CONTRAST_PAIRS: list[tuple[str, str, str]] = [
('background', 'text', 'normal'),
('primary', 'text', 'normal'),
('foreground', 'text', 'normal'),
('current', 'text', 'normal'),
('highlight', 'text', 'normal'),
('console', 'text', 'normal'),
('background', 'icon', 'large'),
('primary', 'icon', 'large'),
('current', 'icon', 'large'),
]
def _linearize(c: float) -> float:
c /= 255.0
return c / 12.92 if c <= 0.04045 else ((c + 0.055) / 1.055) ** 2.4
def _rel_lum(r: int, g: int, b: int) -> float:
return 0.2126 * _linearize(r) + 0.7152 * _linearize(g) + 0.0722 * _linearize(b)
def _contrast_ratio(c1: tuple[int, int, int], c2: tuple[int, int, int]) -> float:
l1 = _rel_lum(*c1)
l2 = _rel_lum(*c2)
return (max(l1, l2) + 0.05) / (min(l1, l2) + 0.05)
def _parse_rgb(color_str: str) -> tuple[int, int, int]:
import ast
if color_str.startswith('rgb('):
return ast.literal_eval(color_str.lstrip('rgb(').rstrip(')'))
named = {'black': (0, 0, 0), 'white': (255, 255, 255)}
if color_str.lower() in named:
return named[color_str.lower()]
if color_str.startswith('#'):
c = color_str.lstrip('#')
return (int(c[0:2], 16), int(c[2:4], 16), int(c[4:6], 16))
return (0, 0, 0)
_BLURB = """
<h3>Heading</h3>
<p>Lorem ipsum dolor sit amet, consectetur adipiscing elit,
sed do eiusmod tempor incididunt ut labore et dolore magna
aliqua. Ut enim ad minim veniam, quis nostrud exercitation
ullamco laboris nisi ut aliquip ex ea commodo consequat.
Duis aute irure dolor in reprehenderit in voluptate velit
esse cillum dolore eu fugiat nulla pariatur. Excepteur
sint occaecat cupidatat non proident, sunt in culpa qui
officia deserunt mollit anim id est laborum.</p>
"""
_COLOR_DESCRIPTIONS: dict[str, str] = {
'canvas': 'Canvas or viewport background.',
'console': 'Console or terminal background.',
'background': 'Main application background.',
'foreground': 'Layer controls and panel background.',
'primary': 'Primary widget surfaces such as sliders and spin boxes.',
'secondary': 'Secondary surfaces and text selection accents.',
'highlight': 'Selection, hover, and highlighted states.',
'text': 'Primary text and labels.',
'icon': 'Icons and glyphs.',
'warning': 'Warning indicators.',
'error': 'Error indicators.',
'current': 'Current or active layer accent color.',
}
class TabDemo(QTabWidget):
def __init__(self, parent: QWidget | None = None) -> None:
super().__init__(parent)
tab1 = QWidget()
tab2 = QWidget()
self.addTab(tab1, 'Tab 1')
self.addTab(tab2, 'Tab 2')
layout1 = QFormLayout(tab1)
layout1.addRow('Height', QSpinBox())
layout1.addRow('Weight', QDoubleSpinBox())
layout2 = QFormLayout(tab2)
sex_row = QHBoxLayout()
sex_row.addWidget(QRadioButton('Male'))
sex_row.addWidget(QRadioButton('Female'))
layout2.addRow(QLabel('Sex'), sex_row)
layout2.addRow('Date of Birth', QLineEdit())
self.setMaximumHeight(88)
class ColorSwatch(QFrame):
def __init__(self, parent: QWidget | None = None) -> None:
super().__init__(parent)
self.setFixedSize(26, 26)
def set_color(self, color: str) -> None:
self.setStyleSheet(
f'background-color: {color}; border: 1px solid rgba(0, 0, 0, 0.25);'
)
class ColorSwatchRow(QWidget):
def __init__(
self,
role: str,
description: str,
parent: QWidget | None = None,
) -> None:
super().__init__(parent)
self._role = role
self._description = description
layout = QHBoxLayout(self)
layout.setContentsMargins(0, 0, 0, 0)
layout.setSpacing(8)
self._swatch = ColorSwatch()
self._label = QLabel()
self._label.setWordWrap(True)
layout.addWidget(self._swatch)
layout.addWidget(self._label, 1)
def set_color(self, color: str) -> None:
self._swatch.set_color(color)
text = f'<b>{self._role}</b> {color}'
if self._description:
text += (
f'<br/><span style="font-size: 9pt;">{self._description}</span>'
)
self._label.setText(text)
tooltip = f'{self._role}: {color}'
if self._description:
tooltip += f'\n{self._description}'
self.setToolTip(tooltip)
self._label.setToolTip(tooltip)
class ThemeSampleWidget(QWidget):
def __init__(self, viewer: napari.Viewer) -> None:
super().__init__()
self._viewer = viewer
self._color_rows: dict[str, ColorSwatchRow] = {}
self._theme_selector = QComboBox()
self._current_button = QPushButton('current')
self._theme_meta = QLabel()
self.setMinimumWidth(800)
self._build_ui()
self._viewer.events.theme.connect(self._sync_from_viewer_theme)
self._sync_from_viewer_theme()
def _build_ui(self) -> None:
outer_layout = QVBoxLayout(self)
outer_layout.setContentsMargins(0, 0, 0, 0)
scroll_area = QScrollArea()
scroll_area.setWidgetResizable(True)
scroll_area.setHorizontalScrollBarPolicy(
Qt.ScrollBarPolicy.ScrollBarAlwaysOff
)
outer_layout.addWidget(scroll_area)
content = QWidget()
content_layout = QHBoxLayout(content)
content_layout.setContentsMargins(12, 12, 12, 12)
content_layout.setSpacing(12)
scroll_area.setWidget(content)
left_column = QWidget()
left_layout = QVBoxLayout(left_column)
left_layout.setContentsMargins(0, 0, 0, 0)
left_layout.setSpacing(10)
left_layout.addWidget(self._build_theme_selector_group())
left_layout.addWidget(self._build_state_group())
left_layout.addWidget(self._build_controls_group())
left_layout.addStretch(1)
content_layout.addWidget(left_column, 2)
right_column = QWidget()
right_column.setMinimumWidth(300)
right_layout = QVBoxLayout(right_column)
right_layout.setContentsMargins(0, 0, 0, 0)
right_layout.setSpacing(10)
right_layout.addWidget(self._build_color_group())
self._contrast_group = self._build_contrast_group()
right_layout.addWidget(self._contrast_group, 1)
content_layout.addWidget(right_column, 3)
def _build_theme_selector_group(self) -> QGroupBox:
group = QGroupBox('Theme selector')
layout = QFormLayout(group)
self._theme_selector.addItems(available_themes())
self._theme_selector.setToolTip(
'Select a builtin or plugin-contributed napari theme.'
)
self._theme_selector.currentTextChanged.connect(
self._on_theme_selected
)
layout.addRow('Theme', self._theme_selector)
help_label = QLabel(
'The selector lists builtin themes and any theme contributions '
'discovered from installed plugins.'
)
help_label.setWordWrap(True)
layout.addRow(help_label)
return group
def _build_controls_group(self) -> QGroupBox:
group = QGroupBox('Controls')
layout = QVBoxLayout(group)
layout.setContentsMargins(6, 5, 6, 5)
layout.setSpacing(4)
layout.addWidget(QPushButton('push button'))
box = QComboBox()
box.addItems(['a', 'b', 'c', 'cd'])
layout.addWidget(box)
layout.addWidget(QFontComboBox())
checkbox_row = QHBoxLayout()
partial = QCheckBox('tristate')
partial.setTristate(True)
partial.setCheckState(Qt.CheckState.PartiallyChecked)
checked = QCheckBox('checked')
checked.setChecked(True)
checkbox_row.addWidget(QCheckBox('unchecked'))
checkbox_row.addWidget(partial)
checkbox_row.addWidget(checked)
layout.addLayout(checkbox_row)
layout.addWidget(TabDemo())
slider = QSlider(Qt.Orientation.Horizontal)
slider.setValue(50)
layout.addWidget(slider)
lab_slider = QLabeledSlider(Qt.Orientation.Horizontal)
lab_slider.setValue(10)
layout.addWidget(lab_slider)
h_scrollbar = QScrollBar(Qt.Orientation.Horizontal)
h_scrollbar.setValue(50)
layout.addWidget(h_scrollbar)
layout.addWidget(QRangeSlider(Qt.Orientation.Horizontal, self))
text = QTextEdit()
text.setMaximumHeight(70)
text.setHtml(_BLURB)
layout.addWidget(text)
input_row = QHBoxLayout()
input_row.setContentsMargins(0, 0, 0, 0)
input_row.setSpacing(4)
input_row.addWidget(QTimeEdit())
edit = QLineEdit()
edit.setPlaceholderText('LineEdit placeholder...')
input_row.addWidget(edit, 1)
layout.addLayout(input_row)
progress = QProgressBar()
progress.setValue(50)
layout.addWidget(progress)
radio_group = QGroupBox('Exclusive Radio Buttons')
radio_layout = QHBoxLayout(radio_group)
radio_layout.setContentsMargins(6, 6, 6, 6)
radio1 = QRadioButton('&Radio button 1')
radio2 = QRadioButton('R&adio button 2')
radio3 = QRadioButton('Ra&dio button 3')
radio1.setChecked(True)
radio_layout.addWidget(radio1)
radio_layout.addWidget(radio2)
radio_layout.addWidget(radio3)
radio_group.setSizePolicy(
QSizePolicy.Policy.Preferred, QSizePolicy.Policy.Maximum
)
layout.addWidget(radio_group)
return group
def _build_state_group(self) -> QGroupBox:
group = QGroupBox('Theme state samples')
layout = QVBoxLayout(group)
button_row = QHBoxLayout()
button_row.addWidget(self._make_state_button('checked', checked=True))
button_row.addWidget(self._make_state_button('unchecked'))
button_row.addWidget(
self._make_state_button('disabled', enabled=False)
)
self._current_button.setCheckable(True)
self._current_button.setChecked(True)
button_row.addWidget(self._current_button)
button_row.addStretch(1)
layout.addLayout(button_row)
disabled_row = QHBoxLayout()
disabled_label = QLabel('Disabled label')
disabled_label.setEnabled(False)
disabled_edit = QLineEdit('Disabled input')
disabled_edit.setEnabled(False)
disabled_check = QCheckBox('Disabled check')
disabled_check.setEnabled(False)
disabled_row.addWidget(disabled_label)
disabled_row.addWidget(disabled_edit)
disabled_row.addWidget(disabled_check)
disabled_row.addStretch(1)
layout.addLayout(disabled_row)
return group
def _build_color_group(self) -> QGroupBox:
group = QGroupBox('Theme colors')
layout = QVBoxLayout(group)
grid = QGridLayout()
grid.setSpacing(10)
columns = 2
for index, role in enumerate(_COLOR_DESCRIPTIONS):
row_widget = ColorSwatchRow(role, _COLOR_DESCRIPTIONS[role])
row, column = divmod(index, columns)
grid.addWidget(row_widget, row, column)
self._color_rows[role] = row_widget
layout.addLayout(grid)
layout.addWidget(self._theme_meta)
return group
def _build_contrast_group(self) -> QGroupBox:
group = QGroupBox('Contrast ratios (WCAG 2.1)')
layout = QVBoxLayout(group)
layout.setContentsMargins(6, 5, 6, 5)
self._contrast_table = QTableWidget(len(_CONTRAST_PAIRS), 4)
self._contrast_table.setHorizontalHeaderLabels(
['Pair', 'Ratio', 'AA', 'AAA']
)
self._contrast_table.verticalHeader().hide()
self._contrast_table.setEditTriggers(
QTableWidget.EditTrigger.NoEditTriggers
)
header = self._contrast_table.horizontalHeader()
header.setSectionResizeMode(0, QHeaderView.ResizeMode.Stretch)
for col in (1, 2, 3):
header.setSectionResizeMode(col, QHeaderView.ResizeMode.ResizeToContents)
layout.addWidget(self._contrast_table, 1)
self._contrast_legend = QLabel(
'<small>AA ≥ 4.5:1 (normal) / 3.0:1 (large) · '
'AAA ≥ 7.0:1 (normal) / 4.5:1 (large)</small>'
)
self._contrast_legend.setWordWrap(True)
layout.addWidget(self._contrast_legend)
return group
def _refresh_contrast(self, theme_dict: dict) -> None:
"""Update the contrast table for the current theme."""
parsed: dict[str, tuple[int, int, int]] = {}
for k in ('background', 'primary', 'foreground', 'current',
'highlight', 'console', 'text', 'icon', 'canvas'):
if k in theme_dict:
parsed[k] = _parse_rgb(str(theme_dict[k]))
# Filter to only WCAG pairs (skip visual-only ones with None aa)
for row, (bg_key, fg_key, cat) in enumerate(_CONTRAST_PAIRS):
if bg_key not in parsed or fg_key not in parsed:
continue
ratio = _contrast_ratio(parsed[bg_key], parsed[fg_key])
threshold_aa = _AA_NORMAL if cat == 'normal' else _AA_LARGE
threshold_aaa = _AAA_NORMAL if cat == 'normal' else _AAA_LARGE
aa_pass = ratio >= threshold_aa
aaa_pass = ratio >= threshold_aaa
self._contrast_table.setItem(row, 0, QTableWidgetItem(f'{bg_key} / {fg_key}'))
self._contrast_table.setItem(
row, 1, QTableWidgetItem(f'{ratio:.1f}:1')
)
for col, ok in ((2, aa_pass), (3, aaa_pass)):
item = QTableWidgetItem('Yes' if ok else 'No')
if not ok:
item.setBackground(QColor(255, 220, 220))
item.setForeground(QColor(0, 0, 0)) # dark text on light bg
self._contrast_table.setItem(row, col, item)
def _make_state_button(
self,
label: str,
*,
checked: bool = False,
enabled: bool = True,
) -> QPushButton:
button = QPushButton(label)
button.setCheckable(True)
button.setChecked(checked)
button.setEnabled(enabled)
return button
def _on_theme_selected(self, theme_id: str) -> None:
self._viewer.theme = theme_id
def _sync_from_viewer_theme(self, event=None) -> None:
theme_id = self._viewer.theme
theme = get_theme(theme_id)
was_blocked = self._theme_selector.blockSignals(True)
self._theme_selector.setCurrentText(theme_id)
self._theme_selector.blockSignals(was_blocked)
theme_dict = theme.to_rgb_dict()
for role, row in self._color_rows.items():
row.set_color(str(theme_dict[role]))
self._theme_meta.setText(
f'<b>Font size:</b> {theme_dict["font_size"]} '
f' | <b>Syntax style:</b> {theme_dict["syntax_style"]}'
)
self._current_button.setStyleSheet(
f'background-color: {theme.current.as_rgb()};'
)
self._refresh_contrast(theme_dict)
viewer = napari.Viewer(title='Theme sample', show_welcome_screen=False)
widget = ThemeSampleWidget(viewer)
dock_widget = viewer.window.add_dock_widget(
widget,
area='right',
name='Theme sample',
)
dock_widget.setMinimumWidth(widget.minimumWidth())
viewer.open_sample('napari', 'cells3d')
if __name__ == '__main__':
napari.run()
