Creating a napari plugin

Overview

In this tutorial, we will make a napari analysis plugin from the detect_spots() function we wrote in the first part of this practical session. The primary steps in making a napari plugin are as follows:

  1. Choose which manifest contribution(s) your plugin requires
  2. Create your repository using the napari-plugin-template
  3. Implement your contributions
  4. Share your plugin with the community

In the following sections, we will work through steps (1) - (3). To set up a minimal plugin, you can read the “Your first plugin” tutorial on napari.org. A functional napari plugin only needs 4 files to be shared with the community, but you will find many other helpful files in the template that make plugins easier to develop and maintain. For step (4), you can refer to the in depth plugin tutorial, or the deploy instructions on napari.org.

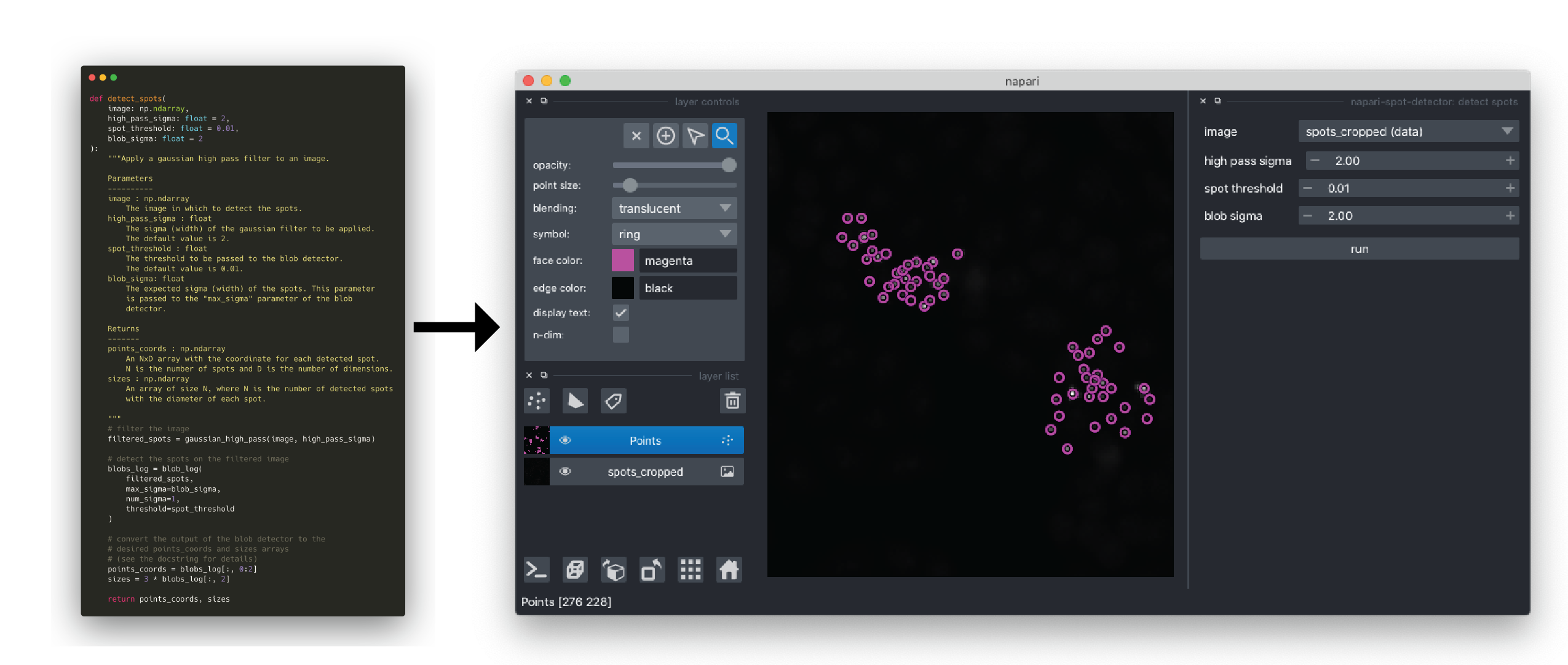

plugin example

Choosing a contribution

A contribution is a construct in napari.yaml (the manifest file), that napari uses for each specific type of plugin. Each contribution conforms to a function signature, i.e. the function linked to the contribution defines what napari provides to the plugin (e.g., data and parameters) and what the plugin returns to napari. napari is then able to use the functions pointed to in napari.yaml to carry out the plugin tasks. Please see the contributions guide for more details. (And technical references for the manifest and contributions. Many plugins will declare multiple contributions to provide all of the desired functionality.

The current categories of contributions are described below:

In this tutorial, we will create a spot detection plugin by implementing a widget contribution with the spot detection function (detect_spots()) we created in the first part of this practical session.

Using the copier napari-plugin-template to create your plugin repository

To make creating the creating plugins easier, we provide a template that automatically builds most of the infrastructure for your plugin, so you can focus on implementing the details unique to your plugin. The template is implemented using a command line utility called copier. In the following steps, you will build your plugin directory using the napari-plugin-template template.

First, open your terminal and navigate to the folder where you want the plugin folder to be created. As before, we recommend using your Documents folder:

cd ~/Documents

Next, activate the conda environment you created in the first part of the tutorial and install the necessary packages to run the template.

conda activate napari-workshop
conda install copier jinja2-time npe2

In this next step, we will use copier to create a directory for our plugin from the template. The template will ask a series of questions that will customize the directory for your plugin. Once completed, a new directory will be created in your current directory. It will come pre-initialized with a git repository. Replace <new-plugin-name> with the name you would like to call your plugin.

copier copy --trust https://github.com/napari/napari-plugin-template <new-plugin-name>

Alternatively, you can use a single command to start the template with uv:

uv tool run --with jinja2-time --with npe2 copier copy --trust https://github.com/napari/napari-plugin-template <new-plugin-name>

You will be asked for some information to customize the setup of your plugin. Each prompt gives the default value in square brackets ([]). Enter your answer after the prompt and press enter to continue. When prompted for which plugins to include, you only need to answer Yes to Include widget plugin?, but you may be interested in exploring the other contributions as well.

To read more about the prompts, you can refer to the napari-plugin-template Prompts Reference After completing all of the questions, a directory will be created containing your new napari plugin. You will be given instructions on how to upload the initialized git repository to GitHub. By default, we will not be covering this aspect in the tutorial, but please feel free to ask the teaching team if you would like to give it a try. Your new plugin directory (assuming you called the plugin napari-spot-detector and the module napari_spot_detector) will be organized as follows.

napari-spot-detector
├── .github
|   ├── ISSUE_TEMPLATE
|   |   ├── bug_report.yml
│   |   ├── documentation.md
│   |   ├── feature_request.md
│   |   └── task.md
│   ├── workflows
│   |   └── test_and_deploy.yml
|   ├── PULL_REQUEST_TEMPLATE.md
│   └── dependabot.yml
├── .napari-hub
│   ├── DESCRIPTION.md
|   └── config.yml
├── src
│   └── napari_spot_detector
│       ├── _tests
│       │   ├── __init__.py
│       │   └── test_widget.py
│       ├── __init__.py
│       ├── napari.yaml
│       └── _widget.py
├── .gitignore
├── .pre-commit-config.yaml
├── LICENSE
├── MANIFEST.in
├── pyproject.toml
├── README.md
└── tox.ini

See below for explanations about some of the most notable files, but do not hesitate to reach out to the teaching team if you have questions about any of the other files.

You have now set up the directory for your new plugin! You can explore the directory and files with the file browser. In the next step, you will complete your plugin by adding your detect_spots() function to the _widget.py file.

Implementing a widget contribution

In this step, we will implement our detect_spots() function as a plugin contribution. First, we will add our spot detection function to the plugin package. Then, we will add the type annotations to the function so that napari can infer the correct GUI elements to add to our plugin.

  1. To edit your plugin source code, open an integrated development environment (VSCode is a good, free option) or text editor.
  2. In VSCode, open the directory you created with copier in the section above.
    • From the “File” menu, select “Open…”
    • Navigate to and select the directory you created with copier (~/Documents/napari-spot-detector if you called your plugin napari-spot-detector).
  3. You should now see your plugin directory in the “Explorer” pane in the left hand side of the window. You can double click on folders to expand them and files to open them in the editor.
  4. Open the src/<module_name>/_widget.py file using VSCode by double clicking on it in the “Explorer” pane.
  5. You will see that it has already been populated with a few code blocks by the template.

    • At the top, you see the imports. You can leave unchanged for now.

    • Next, you see four different ways to add widgets to napari.

      1. The first is a pure Python function flagged with autogenerate: true in the plugin manifest. Type annotations are used by magicgui to generate widgets for each parameter. This is best suited for simple processing tasks - usually taking in and/or returning a layer.

      2. The second option is a magic_factory decorated function. The magic_factory decorator allows you to customize aspects of the resulting GUI, including the widgets associated with each parameter. This is best used when you have a very simple processing task, but want some control over the autogenerated widgets.

      3. The third option is a magicgui.widgets.Container subclass. This provides lots of flexibility and customization options while still supporting magicgui widgets and convenience methods for creating widgets from type annotations. If you want to easily customize your widgets and connect callbacks, this is the best widget option for you.

      4. The fourth option subclasses QWidget directly. This provides maximal flexibility but requires full specification of widget layouts, callbacks, events, etc.

    • For this tutorial, we’ll focus on the first approach (the autogenerate function) since it’s the simplest and most suitable for our spot detection function. This means our function doesn’t need to know anything about magicgui. If we provide type annotations to the parameters, the GUI widgets will be generated for us without even a decorator!

    • Find the Command ID in napari.yaml that points to threshold_autogenerate_widget, and then find that Command ID in the Widgets contribution section. Note that unlike the other widget contributions, this one includes autogenerate: true.

        - command: napari-spot-detector.make_func_widget
    autogenerate: true
    display_name: Example Function Widget
    • Let’s edit threshold_autogenerate_widget to do our spot detection.
  6. You can keep all the example functions in _widget.py for reference, or you can delete the ones you don’t need. If you delete any functions, make sure to also delete the associated Commands and Widget contributions from napari.yaml, and update the imports in napari_spot_detector/__init__.py!
  7. Copy the gaussian_high_pass() and detect_spots() functions from your notebook from the first part of the tutorial and add them to the file.
  8. Next, we need to modify detect_spots() to work as a napari widget. You can either modify the existing threshold_autogenerate_widget function or create a new function. The function should return the necessary layer data so that napari can create a new Points layer with our detected spots. If detect_spots() returns a LayerDataTuple, napari will add a new layer to the viewer using the data in the LayerDataTuple.
    • The layer data tuple should be: (layer_data, layer_metadata, layer_type)
    • layer_data: the data to be displayed in the new layer (i.e., the points coordinates)
    • layer_metadata: the display options for the layer stored as a dictionary. Some options to consider: symbol, size
    • layer_type: the name of the layer type as a string (i.e., 'Points')
  9. Add type annotations to the function parameters (inputs). napari (via magicgui) will infer the required GUI elements from the type annotations. We have to add annotations to both the parameters (i.e., inputs to the function) and the return type.
  10. Annotate the Return type as "napari.types.LayerDataTuple".
  11. Add the required imports for the scipy.ndimage module and scikit-image blob_log() function to the top of the file.
    • from scipy import ndimage as ndi
    • from skimage.feature import blob_log
  12. Finally, we need to add the function to the napari.yaml file so that napari can find the declarations of the plugin without having to import every module at startup. You can read more about how to properly declare a widget in the Contributions Reference. In addition, we can declare plugin contributions to napari menus so that users can find your contributions according to intended use.

_function.py solution

See below for an example implementation of the _widget.py file, and the associated changes to napari.yaml

# _widget.py
from typing import TYPE_CHECKING
import numpy as np
from scipy import ndimage as ndi
from skimage.feature import blob_log

if TYPE_CHECKING:
    import napari


def gaussian_high_pass(image: np.ndarray, sigma: float = 2):
    """Apply a gaussian high pass filter to an image.

    Parameters
    ----------
    image : np.ndarray
        The image to be filtered.
    sigma : float
        The sigma (width) of the gaussian filter to be applied.
        The default value is 2.

    Returns
    -------
    high_passed_im : np.ndarray
        The image with the high pass filter applied
    """
    low_pass = ndi.gaussian_filter(image, sigma)
    high_passed_im = image - low_pass

    return high_passed_im


def detect_spots(
    image: "napari.types.ImageData",
    high_pass_sigma: float = 2,
    spot_threshold: float = 0.01,
    blob_sigma: float = 2
) -> "napari.types.LayerDataTuple":
    """Apply a gaussian high pass filter to an image.

    Parameters
    ----------
    image : napari.types.ImageData
        The image in which to detect the spots.
    high_pass_sigma : float
        The sigma (width) of the gaussian filter to be applied.
        The default value is 2.
    spot_threshold : float
        The threshold to be passed to the blob detector.
        The default value is 0.01.
    blob_sigma: float
        The expected sigma (width) of the spots. This parameter
        is passed to the "max_sigma" parameter of the blob
        detector.

    Returns
    -------
    layer_data : napari.types.LayerDataTuple
        The layer data tuple to create a points layer
        with the spot coordinates.

    """

    # filter the image
    filtered_spots = gaussian_high_pass(image, high_pass_sigma)

    # detect the spots
    blobs_log = blob_log(
        filtered_spots,
        max_sigma=blob_sigma,
        num_sigma=1,
        threshold=spot_threshold
    )
    points_coords = blobs_log[:, 0:2]
    sizes = 3 * blobs_log[:, 2]

    layer_data = (
        points_coords,
        {
            "face_color": "magenta",
            "size": sizes
        },
        "Points"
    )
    return layer_data


#napari.yaml
name: napari-spot-detector
display_name: Spot Detection
contributions:
  commands:
    - id: napari-spot-detector.make_detect_spots_widget
      python_name: napari_spot_detector._widget:detect_spots
      title: Make spot detection widget
  widgets:
    - command: napari-spot-detector.make_detect_spots_widget
      autogenerate: true
      display_name: Spot Detection
  menus:
    napari/layers/segment:
      - command: napari-spot-detector.make_detect_spots_widget

Explore the other files generated by napari-plugin-template

In order for napari to automatically find and make your plugin available to the user once it has been installed (i.e., “discoverable”), we must add a napari.manifest entry point to the pyproject.toml file. An entry point is a way that a Python package can advertise that it has a component available (our plugin in this case). napari searches the python environment for packages that have a napari.manifest and then uses the path in the entry_point to find napari.yaml, where all your plugin functionality is declared.

If we open the pyproject.toml file created by the template, we see that the entry point was already added by the template! If you called your plugin napari-spot-detector and your module napari_spot_detector, you will see the following:

[project.entry-points."napari.manifest"]
napari.manifest =
    napari-spot-detector = "napari_spot_detector:napari.yaml"

Note that src doesn’t occur in the path to napari.yaml, but napari.yaml is definitely within the src folder! Python knows to look inside the src folder for your code because pyproject.toml declares so with the following:

[tool.setuptools.packages.find]
where = ["src"]

Installing and trying out your plugin

To use our plugin, we need to install it in our Python environment. First, return to your terminal and verify you have the napari-workshop environment activated. Then, navigate to the directory that you created with the template. For example, if you named your plugin napari-spot-detector, you would enter the following into your terminal.

cd ~/Documents/napari-spot-detector

Then, we install the plugin with pip. pip is the package installer for Python (see the documentation for more information). We will use the -e option to install in “editable” mode. This means that when we make a change to our source code, it will update the installed package the next time it is imported, without us having to reinstall it.

pip install -e .

To confirm if your installation completed successfully, you can launch napari from the command line.

napari

Once napari is open, you can open your plugin from the “Plugin” menu. You can test your plugin by locating the spots image from the tutorial notebooks folder we downloaded at the beginning of this tutorial in the File browser (<path to notebook folder>/data/stardist_masks.tif), dragging the image into the napari viewer, and try running the plugin.

Congratulations! You have made your first napari plugin!

Bonus exercises

In case you have finished all of the exercises with some time to spare, we have provided some ideas for ways that you can extend the plugin. Please feel free to give them a go and ask the teaching team if you have any questions.
